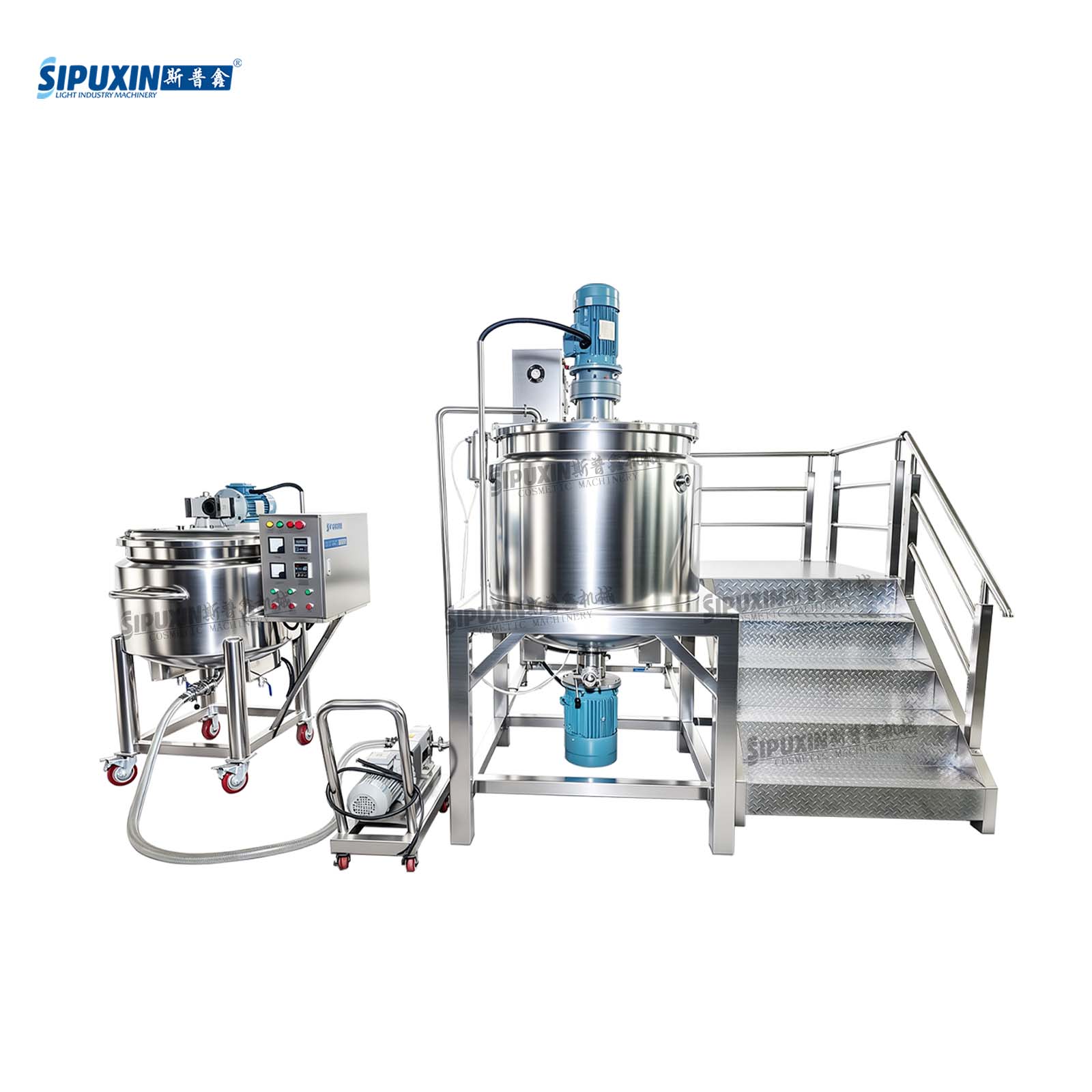

500L homogenized mixng machine+200L mixin tank for shampoo shower gel production

2026-06-01

Machine components details

Capacity	500L+200L
Material	Stainless steel sus304/sus316L
Heating way	Power:18KW Electric heating water in jacket with tap-water cooling system
Mixing way	Power: 4KW; Speed: 0-63 r/min Mixer：Fixed stirrer & frame-wall teflon scrapping agitator with blade
Homogenizer way	Power: 7.5KW; Speed: 0-3000RPM,speed adjustable
Control way	Button control/PLC+Touch screen
MOQ	1 Set
Origin	Guangzhou/Yangzhou,China
Sale warranty	1 year
After sale service	24 hour online video technical suppoert

Pictures for reference

Lid accessories

Flip open cover for easy material feeding

With a motor of ABB brand from Switzerland.

Mixing system

Frame-wall fixed mxier with side Teflon scraper

Speed:0-63RPM ,speed is adjustable, ABB Switzerland brand ,frequency convertor.
Material:SUS.316
Effect: The mixer of the emulsifier achieves rapid dispersion and homogenization through directional shear force and circulating
flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low,
which is suitable for the continuous emulsification of high viscosity materials.

Homogenizing system

High shear homogenizer

Speed:0-3000RPM,speed is adjustble.ABB Switzerland brand ,frequency convertor.
Material:SUS.316

Component:It is made of stator and rotor.Rotor and stator adopts wire cutting finish machining, polishing treatment before assembly. Axis adopt dynamic balance process.homogenizer Adopting Germany Bergman mechanical seal, NSK bearing made in Japan.

Rotor pump

Speed: 200-500 RPM
Material: SUS.316/304

Function:

Transports, transfers and pumps liquid, paste and viscous materials to the mixing machine.

200L mixing tank

Heating way:Electric heating

Working capacity : 200L

Control way:Button control

Mixing speed:0-63 RPM

Function:

Pre-mixing and pre-heating the raw material

Bottom discharge

The bottom discharge hole with manual valve control.

4 ways of discharging:

1.Gravity discharge:It is suitable for the low viscous product.Let it be discharged by gravity

2.Pressure discharge:Add air,give it pressure to discharge the product.

3.Pump discharge:Use pump(like lobe pump) to discharge the product.

4.Tilting discharge:Use the tilting function to tilt the pot down,to discharge the product.

Button control box

Material:SUS.304

Components:Power switch,voltage,current,speed adjustment,temperature controller,timer of the homogenizer,self-protection system
etc.

* Be able to display, set and adjust the center mixer speed .
* Be able to set and adjust the homogenizing speed
* Be able to display, set and adjust temperature
* Be able to display,set and adjust working time for homogenizer.
