2019 High Pressure Vacuum Homogeneous Emulsifying Machine for Making Vitamin C Injection
High Pressure Vacuum Homogeneous Emulsifying Machine for Making Vitamin C Injection

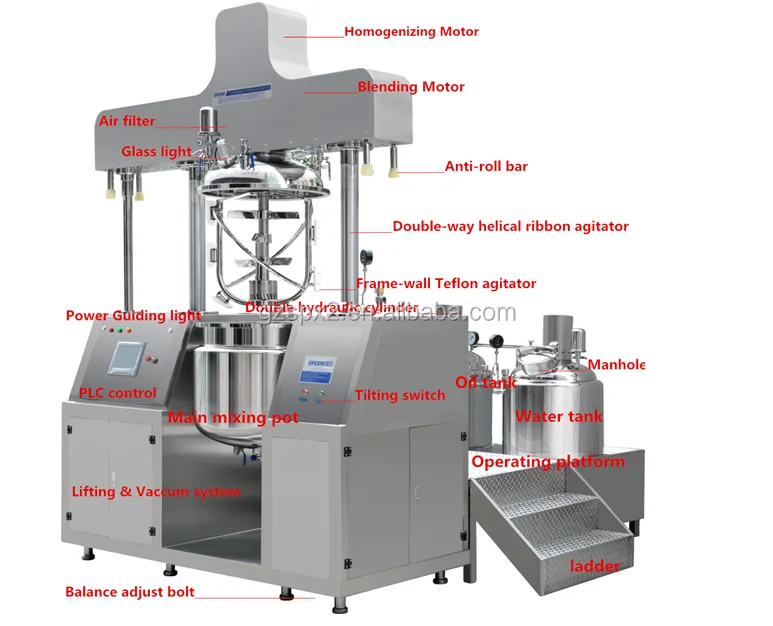

Introduction of vacuum emulsifier
1. The vacuum emulsifying mixer is mainly composed of PLC control panel,(which takes Germany's brand Siemens. It made of control cabinet key, PLC touch screen, power light and emergency stop button)
2. It is suitable for production of ointment and cream products in cosmetic and pharmacrutical.
3. Customer can choose frequency conversiontiming homogenizer and highest rotate speed is 3500r/min.
Vacuum Emulsifier Parameter
| Technical Parameter | |||||||||||
| Model | Effective Capacity | Homogeneous | Agitator | Outside Dimension(mm) | Total power(KW) | ||||||
| KW | r/min | KW | r/min | Length | Width | Height | Maxh | Electric heating | Steam heating | ||
| SZR-HB-5 | 5L | 0.37 | 0-3000 | 0.18 | 0-63 | 1260 | 540 | 1600 | 1850 | 2 | 5 |
| SZR-HB-10 | 10L | 0.75 | 0-3000 | 0.37 | 0-63 | 1300 | 580 | 1600 | 1950 | 3 | 6 |
| SZR-HB-50 | 50L | 3-5.5 | 0-3000 | 1.1 | 0-63 | 2600 | 2250 | 1950 | 2700 | 9 | 18 |
| SZR-HB-100 | 100L | 4-7.5 | 0-3000 | 1.5 | 0-63 | 2750 | 2380 | 2100 | 2950 | 13 | 32 |
| SZR-HB-200 | 200L | 5.5-11 | 0-3000 | 2.2 | 0-63 | 2750 | 2750 | 2350 | 3350 | 15 | 45 |
| SZR-HB-300 | 300L | 7.5-11 | 0-3000 | 2.2 | 0-63 | 2900 | 2850 | 2450 | 3500 | 18 | 49 |
| SZR-HB-500 | 500L | 11 | 0-3000 | 4 | 0-63 | 3650 | 3300 | 2850 | 4000 | 24 | 63 |
| SZR-HB-1000 | 1000L | 15 | 0-3000 | 5.5 | 0-63 | 4200 | 3650 | 3300 | 4800 | 30 | 90 |
| SZR-HB-2000 | 2000L | 15 | 0-3000 | 7.5 | 0-63 | 4850 | 4300 | 3800 | 5400 | 40 | - |

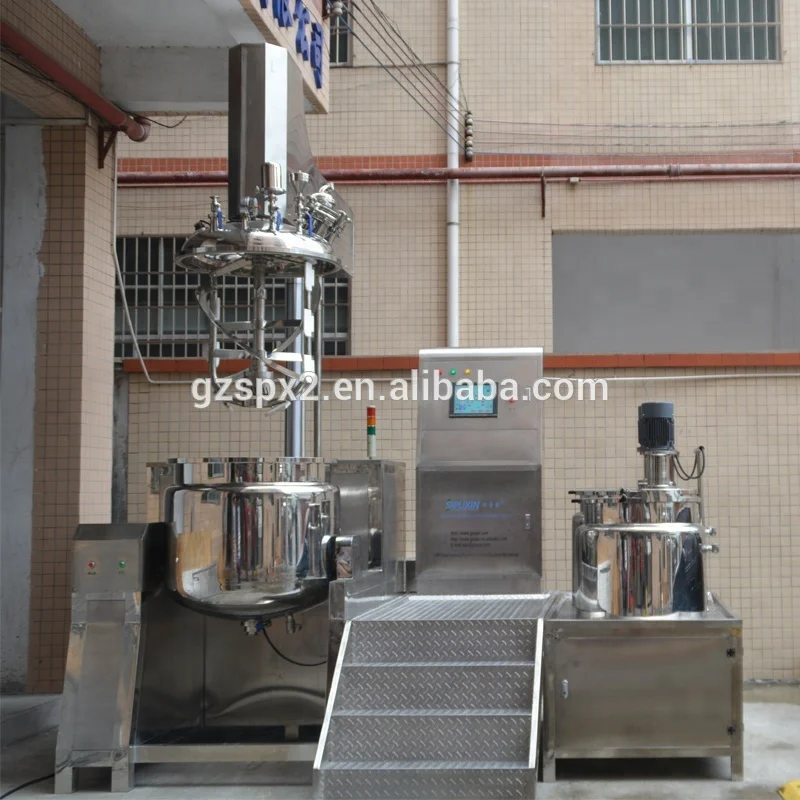

The Image of Machine
1. Many machines are carefully inspected and debugged before delivery to guarantee their stable quality and good performance.
2. All machines in Sipuxin are packed in wooden case.
3. Delivery is always by sea.
Sipuxin company provided you with a chain of services including process design, equipment installation and commissioning.(Global marketing, excellent service)
* Pre-sale: According to email communication or further more communication to make sure the details about the machine.
* Under-sale: We make sure to check the machine before the shipping, and for machines, we support 1years warranty and lifelong positive service.
* After-sale: We can install the machine in your factory, but the cost of accommodation, air ticket, and technician fee will be on your account. However, for small machine, we can install here and showing the video to send you. When you get the machines, you operate on basic of operation instruction and video.
Guangzhou Sipuxin Light Industry Machinery Co., Ltd. Is a professional manufacturer of whole-set equipment for such industries as cosmetic, pharmaceutical, food and daily chemical,etc., with solid backing from Yangzhou Sipusin Light Industry Machinery equipment Factory. Sipuxin provides clients with various solutions for special applications and meeting diversified demand of clients.
Sipuxin pay attention to machine quality and every detail on machine, every process even welding are supervised seriously.

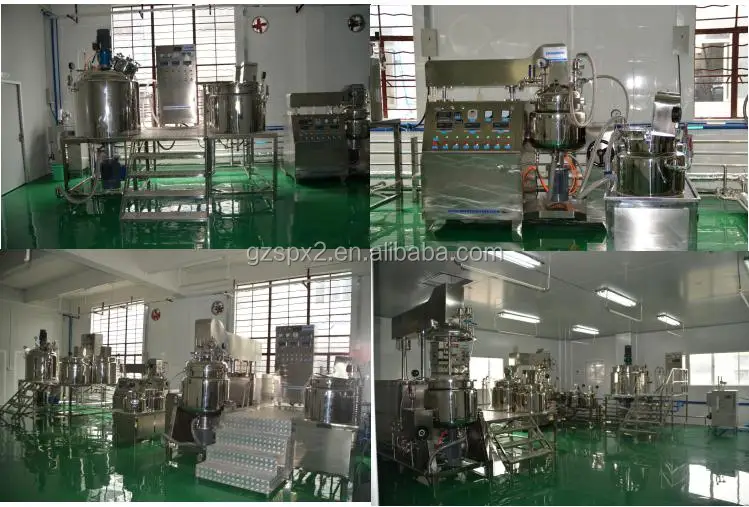

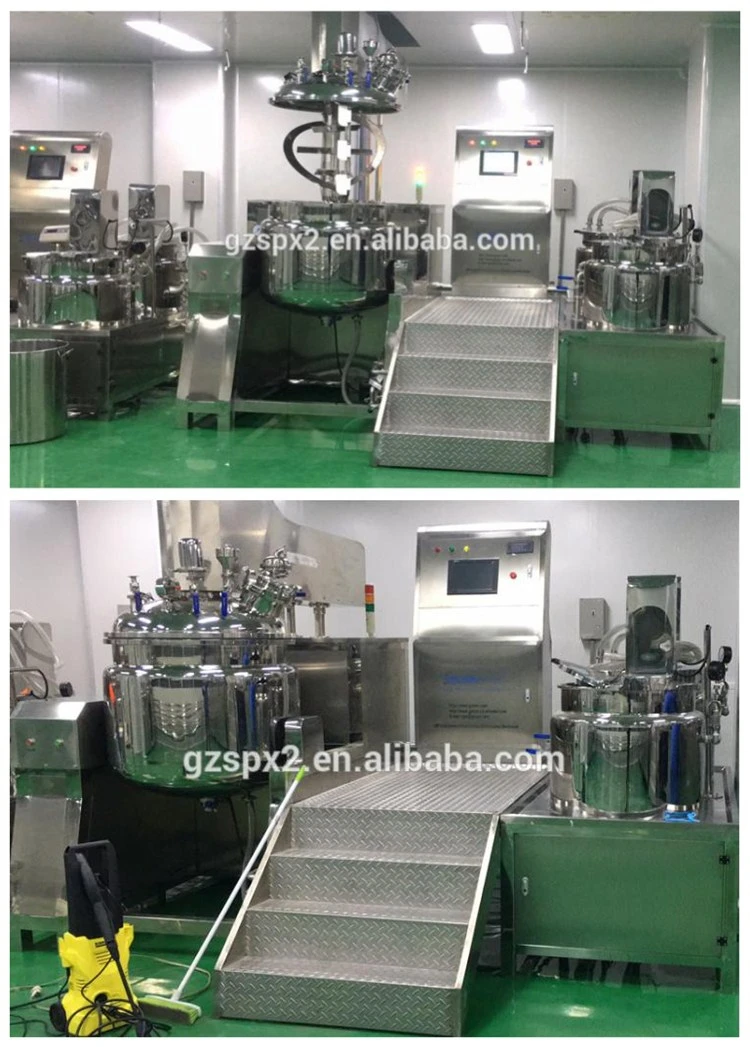

Our Project
Cooperative Client Logo&Certificate
1. Q:Are you a manufacturer or just a trading company?
A: Guangzhou Sipuxin Light Industry Machinery Co. Ltd is one of the top technology-oriented machinery manufacturer in China, with solid backing from Yangzhou Sipuxin Light Industry Machinery equipment factory.
2. Q: Do you accept a special order?
A: Yes, we do. We can manufacture all kinds of chemical equipment according to your technical drawings.
3. Q: Can you give us a quotation right now?
A: Please give us the detail of the technical so we will design and quotate for you as soon as possible.
4. Q: Can your engineer come to our place for installation guides?
A: Yes,we can. We will provide a video and document for installation; If you still have problem, we will send our engineer oversea for installation guide.
5. Q: Where is the nearest port?
A: Guangzhou
