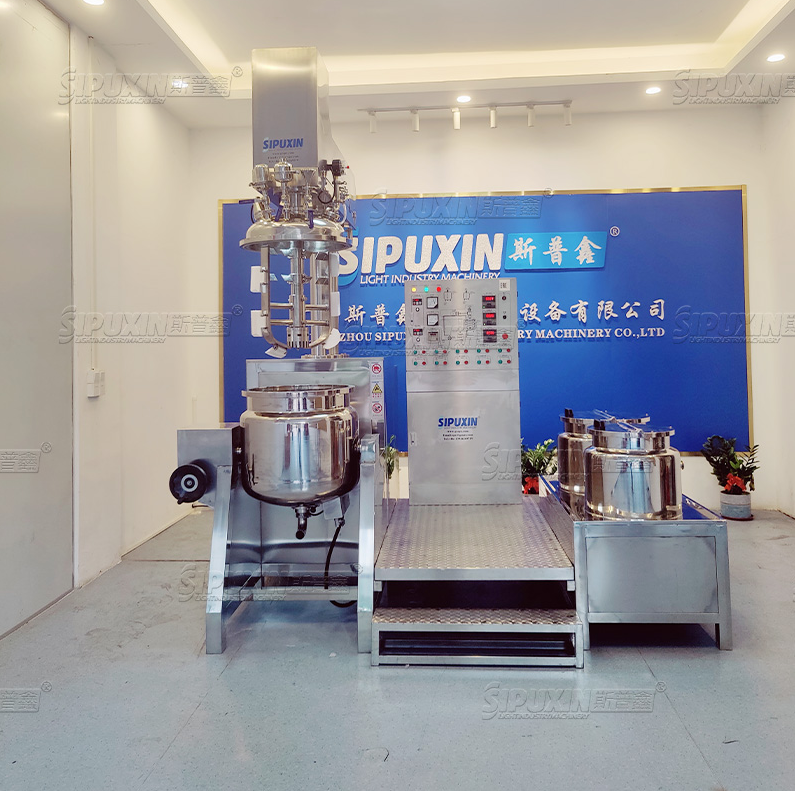

Factory Direct Vacuum Emulsifying Mixer Hydraulic Lifting Vacuum Homogenizing Emulsifier With Top Homogenizer Spiral Ribbon Scraper and Central Stirrer For Cosmetic Cream , Ointment, Sauce Production

✅Hydraulic Lifting & Tilting Discharge Hydraulic system lifts the entire top mixing frame (homogenizer + ribbon stirrer + central agitator) in one piece. The main tank can tilt to pour out finished product. Easy for full inspection and internal cleaning, no dead corner.

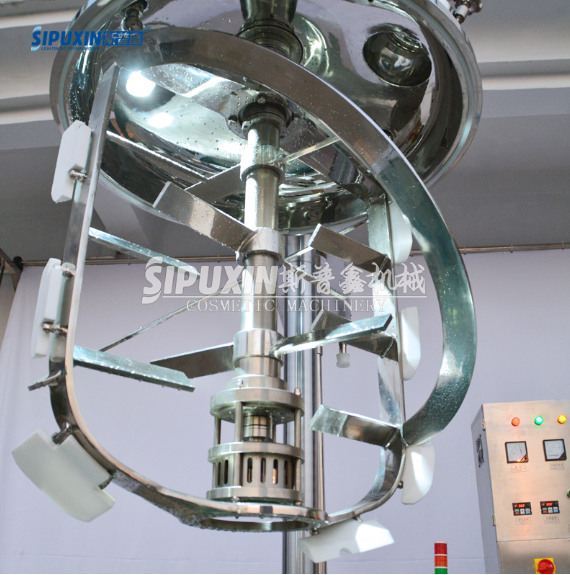

✅Three-in-one Mixing System: Top Homogenizer + Spiral Ribbon Wall Scraper + Central Stirring

1. Spiral Ribbon Wall Scraper  Large spiral ribbon frame with PTFE scrapers closely fits tank inner wall. Continuously scrape off high-viscosity materials stuck on wall, avoid coking, and push materials toward center for uniform circulation. Variable frequency speed control.
2. Central Auxiliary Agitator Central vertical impeller promotes vertical material circulation, accelerates heat transfer and homogenization, eliminates dead zone inside tank.
3. Top Mounted High Shear Homogenizer  Homogenizer installed on top cover, rotor-stator high-speed shearing. Material is sucked upward and pass through homogenizing cavity repeatedly. Particle fineness reaches 0.2~5μm. Perfect for thick cream, paste and gel.

✅Vacuum Defoaming Function  Work under vacuum condition, eliminate bubbles during emulsification. Final products are glossy, smooth without air holes, prevent material oxidation.

✅Three-layer Jacket Tank for Heating & Cooling  Interlayer for heating (electric / steam heating optional), outer insulation layer. Water/oil circulation heating, precise temperature control. Cooling channel available.
