Hydraulic Lifting Vacuum Homogenizing Emulsifier Machine with Water & Oil Phase Vessels

SPX HRH50

Quantity:

Contact Now

add to cart

Product Overview

This vacuum homogenizing emulsifier adopts hydraulic lifting structure, equipped with independent water phase tank and oil phase tank. Under vacuum environment, materials are mixed, stirred, homogenized and emulsified through high-speed shear homogenizer and slow anchor stirring. It can realize fine emulsification, avoid bubble generation, improve product fineness and stability.

Widely used for manufacturing facial cream, body lotion, ointment, serum, hair care products, pharmaceutical ointments, food paste and chemical emulsions. Suitable for medium & small batch factory production.

Standard Configuration

Main vacuum emulsifier tank (hydraulic lift type)
Independent oil phase mixing tank
Independent water phase mixing tank
Bottom high shear homogenizer
Slow speed scraping wall agitator

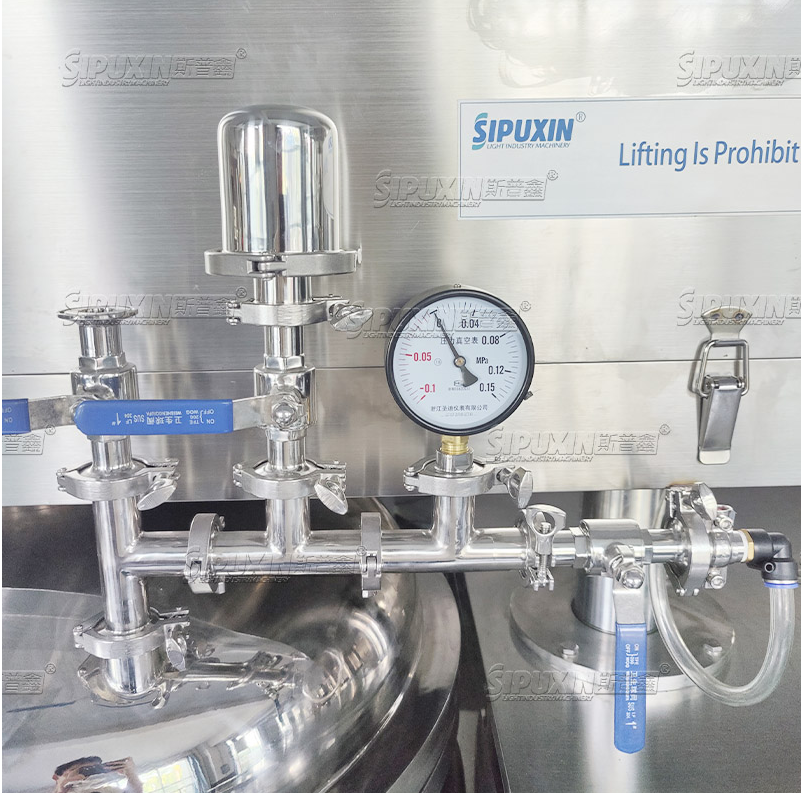

Vacuum system
Heating & cooling jacket

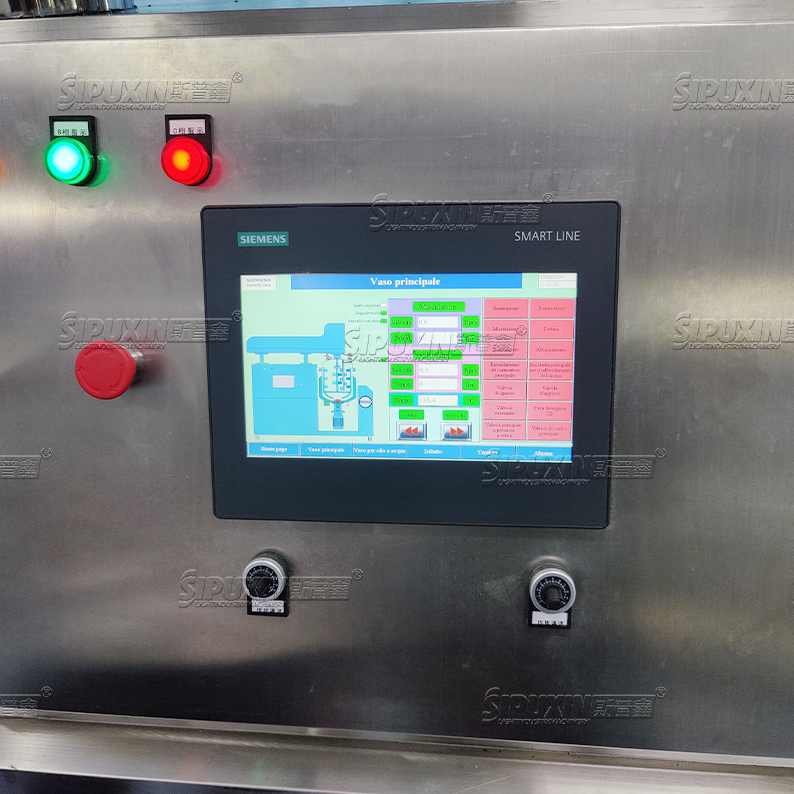

PLC touch screen control system
Stainless steel operation platform

Technical Parameter Template

Working Volume	100L
Material Contact	SUS316L Stainless Steel
Homogenizer Speed	0–3000 rpm (variable frequency)
Stirring Speed	0–63rpm (variable frequency)
Heating Mode	Electric heating
Control	PLC + Touch Screen
Power	3 phase 380V 50HZ (customized)

✅Hydraulic Lifting System

The main emulsifying pot cover can be lifted automatically, convenient for cleaning tank interior, changing materials and maintenance,

fully meeting GMP hygiene requirements.

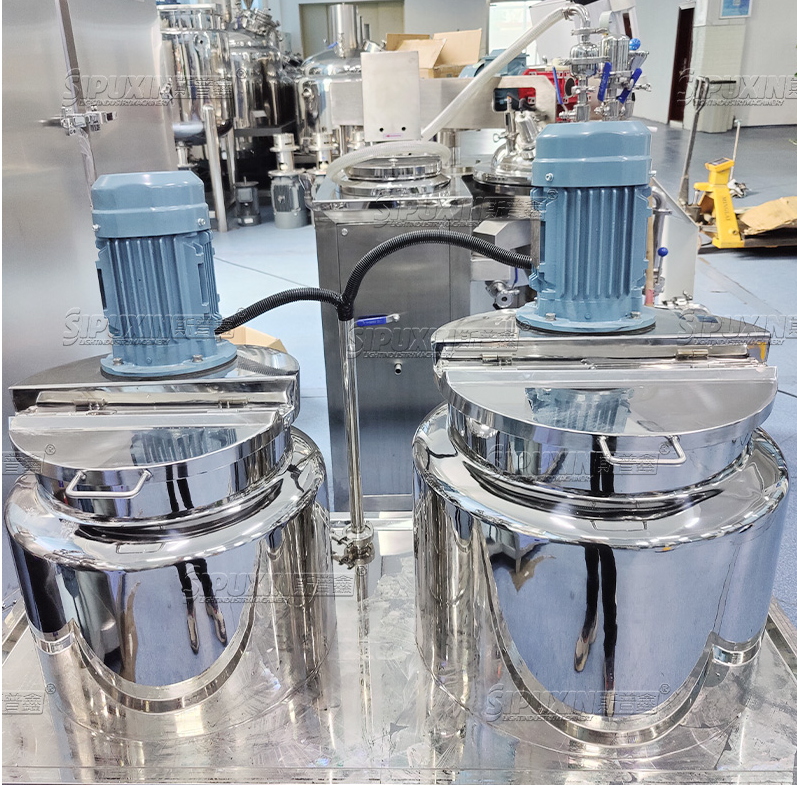

✅Water & Oil Phase Tanks

Separate heating mixing tanks for water raw materials and oil raw materials.

Pre-heating and premixing in advance greatly shorten production cycle.

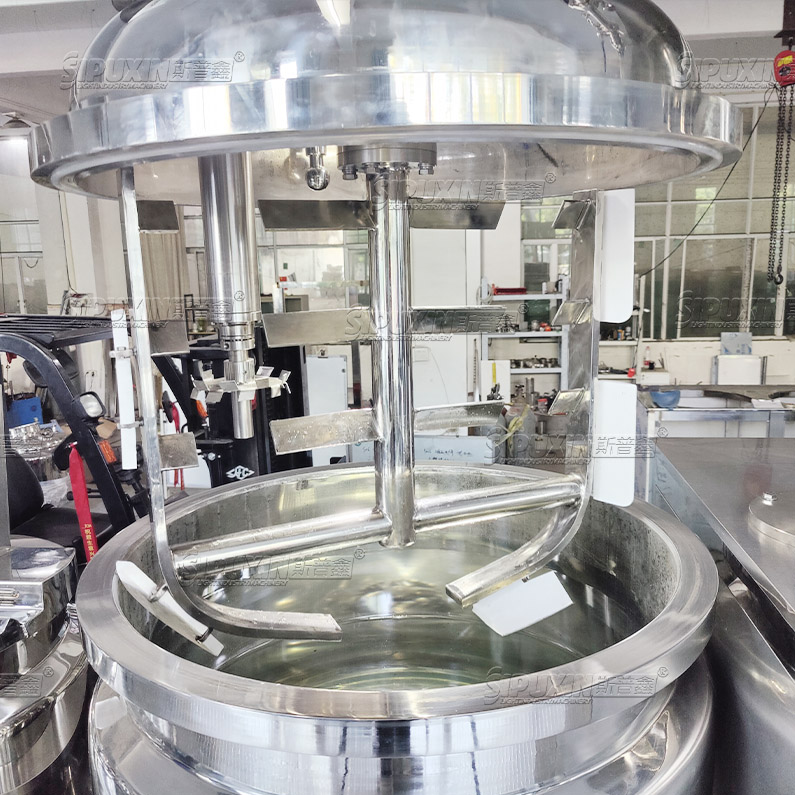

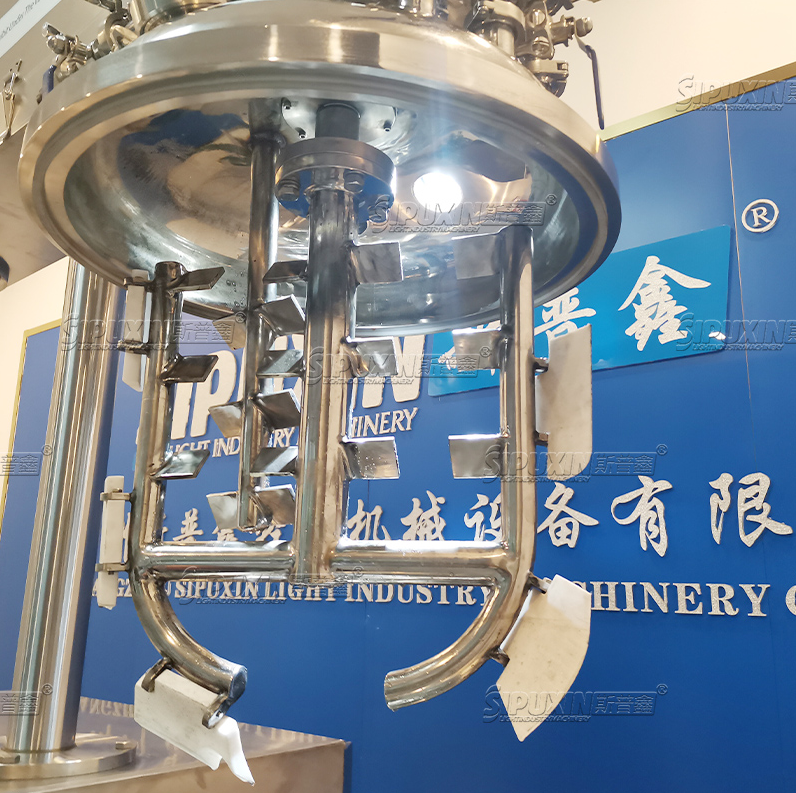

✅ Stirring System

Slow-speed anchor scraping stirring ,equipped with PTFE wall scrapers. It closely fits the tank inner surface to continuously scrape off viscous materials, preventing material carbonization and adhesion on tank wall.
