Filling machine

Automatic Double Head Gear Pump Hot Filling Machine for Viscous Paste Cream Vaseline Gel

SPXHGXZ
Quantity:
Contact Now
add to cart
Product Description

Performance
1. The machine is equipped with a rotor pump, which is small in size and has a large filling range.
2. The machine is made of 304 stainless steel, witch is food greade.
3. Servo motor drives rotor pump, high filling accuracy.
4. PLC and touch screen control panel, easily adjust various filling parameters. 5. It can be connected with automatic labeling machine and capping machine to form a product line.
Machine weight
About 100kg
Product name
Jacket warming, mixing, filling machine
Material
inner tank SUS304
Function
filling dosing machine
Filling volume
1-100ml
Stirring speed
0-60 rpm
Control system
PLC+touch screen
Power
2.2KW
Voltage
AC220V/50Hz
Type
double layers jacket heating
Advantage
Customized
Details Images
30L Hopper with liquid level sensor

316 stainless steel, with liquid level sensor.
When the material in the hopper is insufficient, the material level sensor will control the feeding pump to automatically feed the
hopper in real time to ensure sufficient material in the hopper
Multi-point Independent Temperature Control
Stainless steel 316 piston cylinder

Equipped with automatic feeding function.
Filling Device

The filling height can be adjusted according to the height of the bottle. Electric and manual options are available
Design features: drip-proof design, multiple sealing rings, mirror polish
PLC touch screen control panel
Digital touch screen control system,simple parameter setting, intelligent work.
Company Introduction
About Us
Guangzhou Sipuxin Light Industrial Machinery Equipment Co.,Ltd.with Yangzhou Sipuxin Light Industrial Machinery Equipment Factory as a solid backing,specializing in cosmetics,food,daily chemicals and other industries complete sets of equipmer manufacturers,to provide customers with a variety of special application fields of solutions .
The main products include vacuum homogenizing emulsifier,high-shear liquid detergent mixer,storage tank various cream,various bottle capping machine and other cosmetic and perfume whole-set production line,laboratory equipment,conveyor,etc.

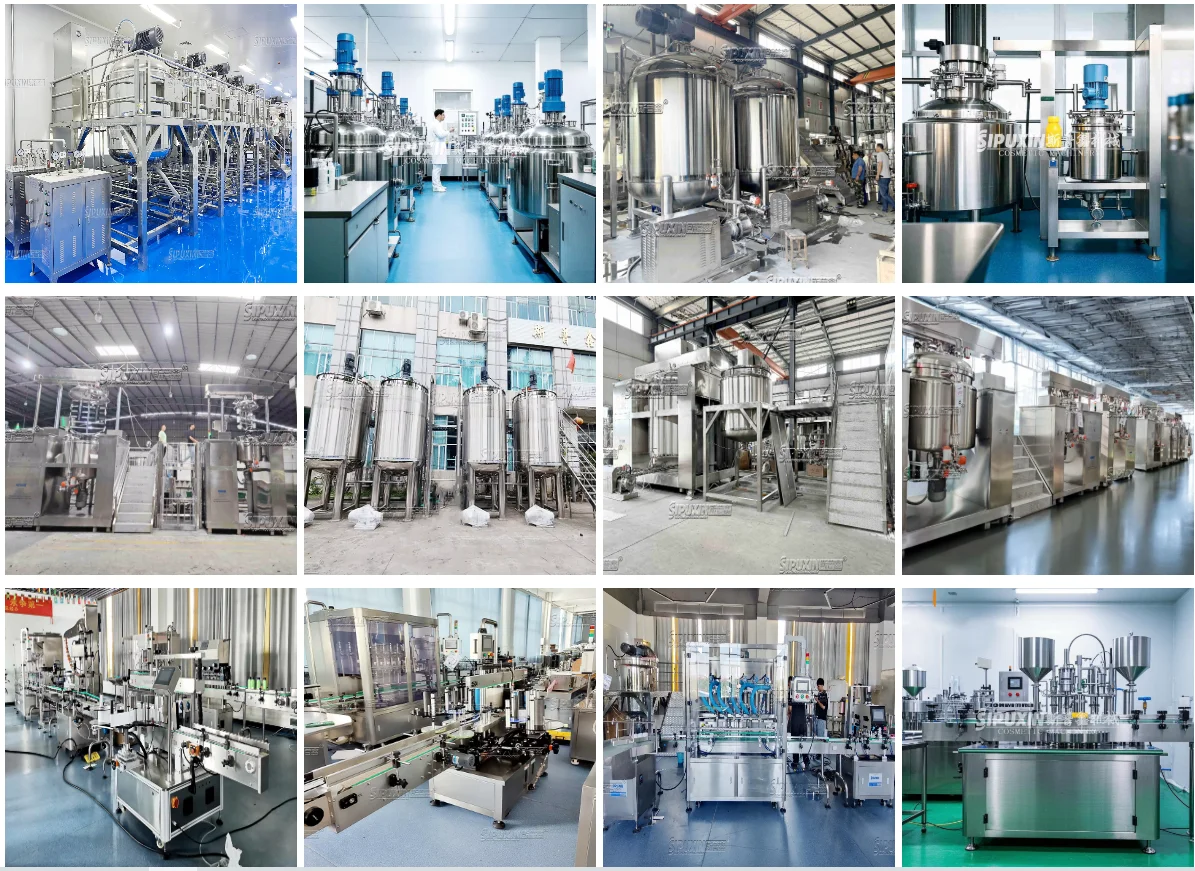

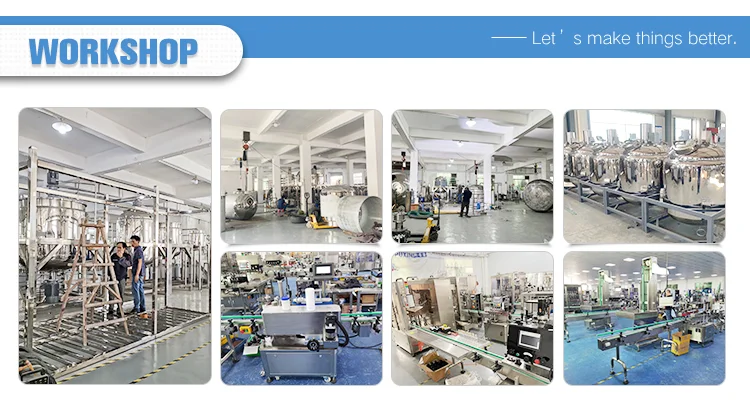

Factory profile
Trade show participation
Packaging & shipping specifications
FAQs
Are you a factory?
Yes, we are a factory with more than 20 years experiences. Guangzhou Sipuxin Light Industry Machinery Co., Ltd. is a professional manufacturer of whole-set equipment for such industries as cosmetics, food and daily chemical, etc.. We solid backing from Yangzhou Sipuxin Light Industry Machinery Equipment Factory.
Where is your factory? Can I visit your factory?
Our factory is located in Baiyun District, Guangzhou City, Guangdong Province, near to Guangzhou Baiyun International Airport. We warmly welcome you to visit our factory.
Can you make a design for us?
Yes We can What we supply is not only product but also solution and design.
What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems.
What's the guarantee if we purchase from you?What's the guarantee if we purchase from you?
All the equipment ordered from us will provide 12 months guarantee from the delivery date. If there is any wearing part be broken within the warranty and isn't caused by improperly operation then we would offer the new parts for free.
